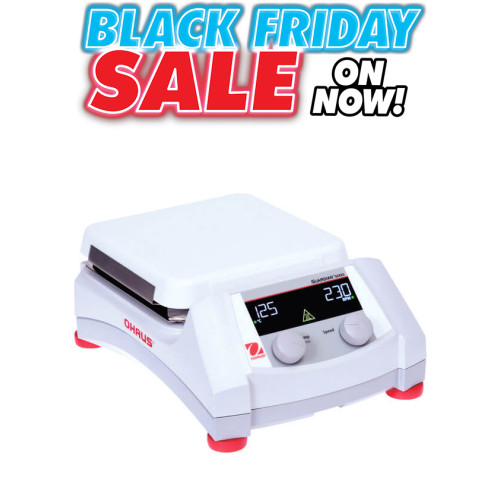

Ohaus Guardian 5000 Digital Hotplate Stirrer, Ceramic Top Plate 17.8 x 17.8cm

OHAUS Guardian 5000™ Hotplates Stirrers are designed for safety and simplicity in all research, academic and industrial applications. The design ensures proper mixing and temperature control of the top plate or your sample when using the optional temperature probe. Heating models include a Single Point Calibration feature for multiple setpoints. Select from five models with three plate sizes for your everyday heating and stirring applications.


Applications
Boiling Water, Water/Oil Bath Preparation, Sample and Solution Preparation, Dissolving Buffers and Reagents, Preparing Media, Concentrating Samples

Display
Backlit LCD Display for temperature and speed, green indicator lights when unit is heating and stirring, prominent hot top indicator light, probe in use icon, Single Point Calibration icon
Operation
Stirring from 60 to 1600 rpm, Temperature range of ambient +5°C to 500°C (ceramic top) or 380°C (aluminum top), power cord (included), stirring models include a 1.5” (3.8 cm) PTFE coated stir bar
Construction
Probe connection, SmartHousing™ stays cool to the touch and is chemical resistant, IP21 Ingress Protection, polycarbonate front panel, control knobs, On/Off switch for heater disconnect, built-in support rod holder, easy to clean ceramic or aluminum tops
Design Features
Hot top indicator light, audible alarm, SafetyHeat™ protection shuts off the heater in the event of a malfunction, temperature calibration feature for 3 probe and 3 plate setpoints

 SPECIFICATIONS

FunctionHeating and Stirring
Capacity15 L
Plate ConstructionCeramic
Plate Size7 in x 7 in (178 mm x 178 mm)
Temperature RangeAmbient + 5°C – 500°C
Speed Range60 rpm – 1,600 rpm
CalibrationTemperature Calibration 3 Plate/3 Probe
ControlDigital
Dimensions4.8 in x 12.2 in x 8.8 in (122 mm x 309 mm x 223 mm) (HxLxW)
DisplayCustom Backlit LCD
